About this item

• Homeline 200 Amp 20-Space 40-Circuit Ring-Type Surface Mount Ring type Overhead/Underground CSED, Semi Flush Mount with Kit
• Accommodates plug-on secondary surge arrestor and features a plug-in design for easy installation
• Use type HOM circuit breakers, Rated 120/240Vac,
• 4 jaw meter socket
• NEMA type 3R enclosure

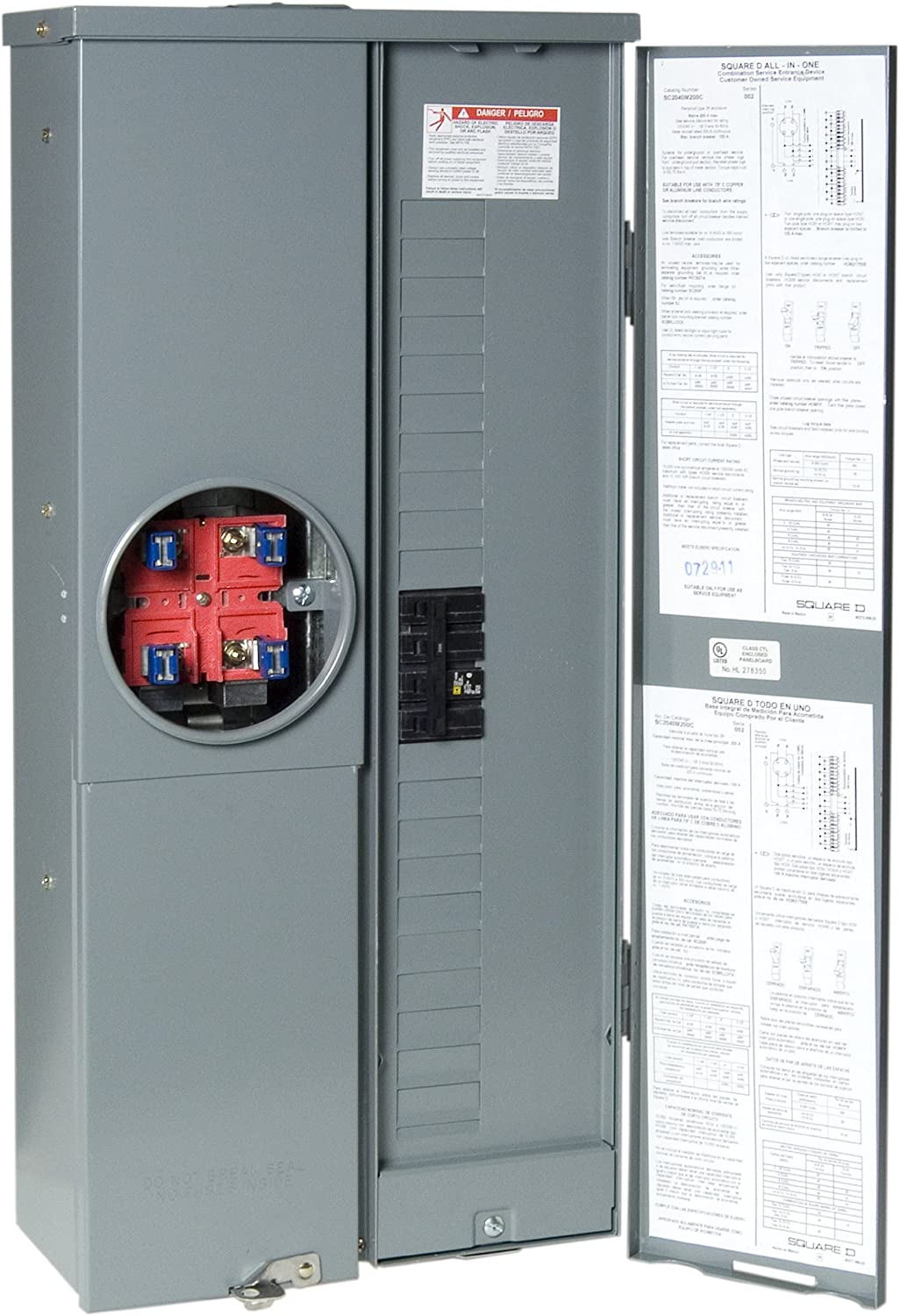

• The Square D 200 Amp 20-Space 40-Circuit Combination Meter Socket and Main Breaker Load Center is suitable for use as a combination service entrance device (CSED). This unit is ANSI certified and UL listed with a maximum 10,000 AIR. The ring type unit is intended for use as a combination meter socket and main breaker load center. It is suitable for overhead or underground service applications. Meets EUSERC Specifications. Surface mount, convertible to semi-flush with SC200F kit. This CSED is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline CSEDs are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline CSEDs are engineered for fast installation and wire savings.
